The Automotive car ECM Programming course aims to equip students with the skills to diagnose and resolve programming issues in vehicles. Students will learn about vehicle diagnostics, including On-Board Diagnostics (OBD), and how to use diagnostic tools and software to identify and fix problems. The course covers vehicle control systems, such as engine management, braking, steering, and injector coding, teaching students how to program and enhance these systems for better functionality and security. Additionally, students will gain an understanding of the design and components of modern vehicles, including the drivetrain, chassis, electrical systems, and communication systems, preparing them to handle a wide range of automotive programming challenges.

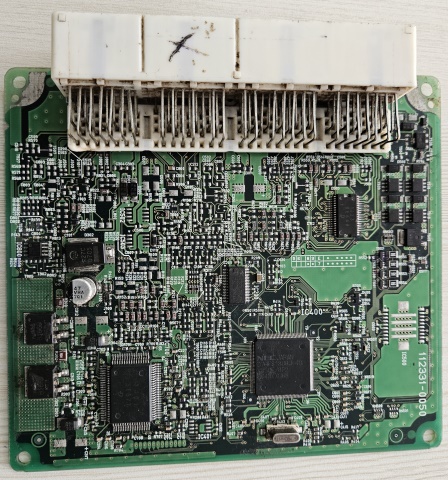

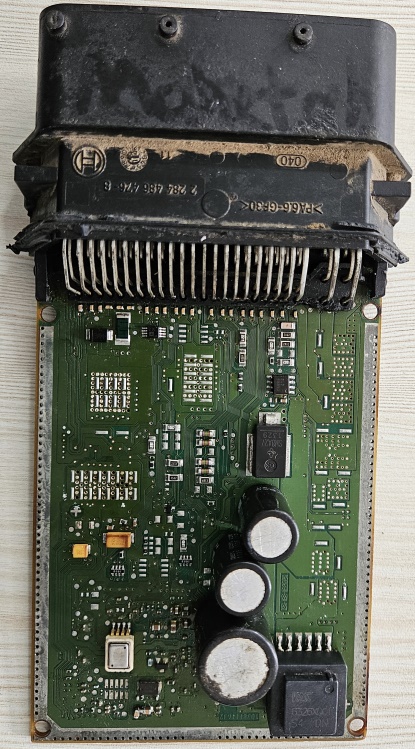

• How to open ECM and basic knowledge of ECM

• Introduce Multi meter
  • How to Measure AC/DC Voltage?
  • How to Measure Current?
  • How to Measure Resistance?
  • How to use continuity mode in multi meter?

• Introduce basic Electronics
  • Series/parallel
  • AC/DC Current
  • AC/DC Voltage
  • Resistance
  • Capacitance

• Component Knowledge
  • Resistor
  • Capacitor (Polar/Non Polar)
  • Inductor
  • Diode (Single/Dual Diode)
  • Transistor
  • MOSFET
  • Regulator
  • Crystal Oscillator

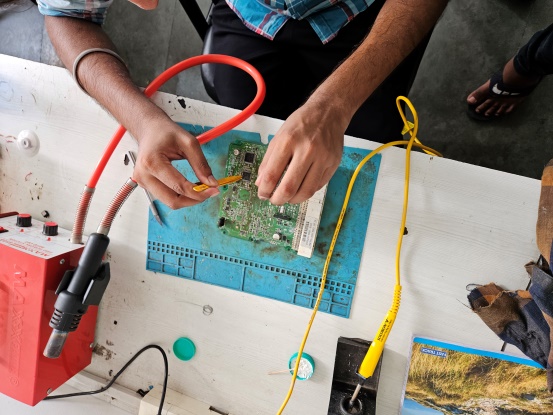

• SMD Rework of small components
  • Diode
  • Resistor
  • Non Polar
  • Etc.

• SMD Rework of medium components
  • Transistor
  • MOSFET
  • Regulator
  • Small ICs (Eeprom, Regulator ICs, Etc.)
  • Capacitor
  • Etc.

• SMD Rework of multi components
  • Big ICs
  • MCU
  • 2 Side Leg ICs
  • 3 Side Leg ICs

• Basic knowledge of ECM hardware offline tracking
  • Ignition Circuit
  • Communication Protocol Circuit
    • Can High
    • Can Low
    • K-Line
  • 5V Reference Circuit
  • Sensors Line
    • Rail Pressure
    • Crankshaft Position Sensor
    • Cam Shaft Position Sensor
    • Accelerator Position Sensor 1 and 2
    • Mass air flow
    • Intake air temperature sensor
    • Oil Pressure Sensor
    • Coolant Temperature Sensor
    • Etc.
  • Actuators Line
    • Fuel Pump
    • Radiator Fan
    • Fuel Pump Actuator
    • Engine Indicator Lamp Circuit
    • Injector Circuit (Low Section, High Section)
    • AC Compressor Relay
    • Main Relay
    • Etc.
  • 12V Circuit
  • Odometer Gauge signal from ecm Circuit

• Basic knowledge of ECM hardware offline tracking
  • Onboard Voltage (Injector High Voltage, 5V, 3.3V, 2.5V, 1.5V, etc.)

• Introduction of K-tag
  • Vehicle List
  • Protocols

• How to read and write ECM.
  • Via Boot Mode

• Introduction of Kt200
  • Boot mode
  • Bench mode
  • OBD mode

• Introduction of Kess-V2
  • OBD mode on bench by used of JEMAT ECU Tester
  • OBD mode on Vehicle
  • Kess-V2 boot mode

• KEY PROGRAMING
  • On table with JEMAT (By using Programming tool)
  • On Table with JEMAT (By using scanner)
  • On Vehicle (By using Programming tool)
  • On Vehicle (By using Scanner)

• How to check cluster Gauge motor work or not work on table.

• How to calibrate cluster gauge motor by scanner?

• How to correct cluster mileage use by tool?

• Remote programming.
  • Aftermarket Central Lock Module
    • Nippon
    • Crosslink
    • Minda
    • Autocope
    • Etc.
  • BCM
    • Scanner option
    • Programing option

• Key cutting
  • Side Cutting Machine
  • Ultra Cutting Machine
  • Auto Machine

• G-auto Probe
  • Voltage
  • Frequency
  • Duty Mode

• How to use singsing probe tool
  • Injector
  • Relay
  • Dynamo

• How to operate full option used JETAT
  • ECM
  • ECM Kit
  • EPS
  • Etc.

• How to use Scanner.
  • Read DTC
  • Clear DTC
  • Read Data Stream
  • Actuate test
  • Special Function

• How to use vvdi mini
  • Transponder
    • Generate Transponder
    • Transponder Check
    • Cloning
    • Reset
  • Remote
    • Generate Remote
    • Frequency Check
    • Cloning
    • Reset

• How to use relay tester?

• ECM flashing

Fees – Rs. 50,000/- (including GST)
Hostel facility – 7,000/- per Month including food
Duration – 30 Days (Minimum)
Location – JustAuto Solutions Pvt. Ltd., Plot No: B1, B2, B3/15, Electronics Estate, GIDC, Sector 25, Gandhinagar, Gujarat

JustAuto Solution’s Certification – ISO Certified,Startup India Recognized, MSME Recognized, Skill India Recognized.
JustAuto Solution is authorised and affiliated Training Partner/Centre of Automotive Skill Development Council (ASDC) and Skill India
